This class implements a geospatial path planner that uses AStar's algorithm with a bias towards travel scores to find the optimal path between two points. geospatial data is fetched from the LidarHandler, and the path is planned using the Eigen library for matrix operations. More...

#include <GeoPlanner.h>

Collaboration diagram for pathplanners::GeoPlanner:

[legend]

Classes
struct	PlannerState
	This struct represents the state of a node in the path planning algorithm. More...

struct	PlannerStateCompare
	This struct is used to compare two PlannerState objects based on their cost. More...

struct	TileKey
	This struct represents a tile key in the implicit graph representation. We divide the plan into a regular grid of tiles of size dTileSizedTileSize meters. A tile covering the real-world X coordinate in [idTileSize, (i+1)dTileSize) and Y coordinate in [jdTileSize, (j+1)*dTileSize) is represented by the key (i, j). More...

struct	TileKeyEqual
	This struct is used to compare two TileKey objects for equality. After the hashbuckets narrow down candidates, we need to still confirm that the X and Y coordinates are equal to ensure they are the same tile. More...

struct	TileKeyHash
	This struct is used to hash TileKey objects for use in unordered maps. It combines the X and Y coordinates to create a unique hash for each tile key. We hash stKey.nX and stKey.nY separately and combine them using XOR and bit shifting. More...

Public Member Functions
	GeoPlanner (double dTileSize=50.0)
	Construct a new Geo Planner:: Geo Planner object.

	~GeoPlanner ()
	Destroy the Geo Planner:: Geo Planner object.

std::vector< geoops::Waypoint >	PlanPath (LiDARHandler *pLiDARHandler, const geoops::UTMCoordinate &stStart, const geoops::UTMCoordinate &stEnd, double dSearchRadius=2.0, double dMaxSearchTimeSeconds=240.0, bool bPlotPath=false)
	Plan a path from the start to the end UTM coordinates using A* algorithm.

void	ClearGeoCache ()
	Clear all cached tiles and KD-Tree data.

void	SetTileSize (double dTileSize)
	Set the size of each tile in meters.

void	SetMinTravScore (double dMinTravScore)
	Set the minimum traversal score for path planning.

void	SetBetaBias (double dBetaBias)
	Set the beta bias for travel scores in path planning.

double	GetTileSize () const
	Get the size of each tile in meters.

double	GetMinTravScore () const
	Get the minimum traversal score for path planning.

double	GetBetaBias () const
	Get the beta bias for travel scores in path planning.

Private Member Functions
bool	InitializeSearch (const geoops::UTMCoordinate &stStart, const geoops::UTMCoordinate &stEnd)
	Initialize the search by caching the start and end tiles and setting up initial states.

void	SearchAStar ()
	Perform the A* search algorithm to find the optimal path.

std::vector< geoops::Waypoint >	ReconstructPath () const
	Plan a path from the start to the end UTM coordinates using A* algorithm.

void	CheckAndLoadTile (const PlannerState &stCurrentState)
	Check if the tile containing the current state is loaded, and if not, load it.

PlannerState	FindClosestLiDARPoint (const geoops::UTMCoordinate &stCoordinate)
	Find the closest LiDAR point to the given UTM coordinate.

void	PlotPathAndTerrain (const std::vector< geoops::Waypoint > &vPath) const
	Plot the given path and the terrain points that the path goes through.

double	EuclideanDistance (double dEasting1, double dNorthing1, double dAltitude1, double dEasting2, double dNorthing2, double dAltitude2) const
	Calculate the distance between two UTM coordinates.

Private Attributes
const std::function< void(const rovecomm::RoveCommPacket< float > &, const sockaddr_in &)>	MinTravScore
	Callback function used to set the minimum travel score for path planning.

const std::function< void(const rovecomm::RoveCommPacket< float > &, const sockaddr_in &)>	BetaBias
	Callback function used to set the beta bias for travel scores in path planning.

int	m_nStartID

int	m_nEndID

double	m_dBeta

double	m_dMinTravScore

double	m_dTileSize

double	m_dSearchRadius

double	m_dMaxSearchTimeSeconds

LiDARHandler *	m_pLiDARHandler

std::unique_ptr< logging::graphing::PathTracer >	m_pPathTracer

std::unique_ptr< KDTree2D >	m_pKDTree

std::mutex	m_muPathGenMutex

std::priority_queue< PlannerState, std::vector< PlannerState >, PlannerStateCompare >	m_pqOpenSetNextBest

std::unordered_map< int, int >	m_umPredecessors

std::unordered_set< int >	m_usClosedSet

std::unordered_map< int, PlannerState >	m_umAllStates

std::unordered_map< TileKey, std::vector< LiDARHandler::PointRow >, TileKeyHash, TileKeyEqual >	m_umTileMapCache

std::unordered_set< TileKey, TileKeyHash, TileKeyEqual >	m_usKDTreeInsertedTiles

Detailed Description

This class implements a geospatial path planner that uses AStar's algorithm with a bias towards travel scores to find the optimal path between two points. geospatial data is fetched from the LidarHandler, and the path is planned using the Eigen library for matrix operations.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-07-14

Constructor & Destructor Documentation

◆ GeoPlanner()

pathplanners::GeoPlanner::GeoPlanner ( double dTileSize = 50.0 )

Construct a new Geo Planner:: Geo Planner object.

Parameters

dTileSize - The size of each tile in meters. Default is 5.0 meters.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-24

    {
        // Initialize member variables.
        m_dTileSize             = dTileSize;
        m_pLiDARHandler         = nullptr;
        m_nStartID              = -1;
        m_nEndID                = -1;
        m_dBeta                 = 1.0;
        m_dMinTravScore         = 0.0;
        m_dSearchRadius         = 3.0;
        m_dMaxSearchTimeSeconds = 120.0;
        m_pPathTracer           = std::make_unique<logging::graphing::PathTracer>("GeoPlanner Path", false);
        m_pKDTree               = std::make_unique<KDTree2D>(PointKDAccessor());

        // Create path plotter layers.
        m_pPathTracer->CreateDotLayer("TerrainPoints", "gray", false);
        m_pPathTracer->CreatePathLayer("RoverPath", "red");

        // Make sure RoveComm UDP Node is initialized.
        if (network::g_pRoveCommUDPNode != nullptr)
        {
            // Set RoveComm Node callbacks.
            network::g_pRoveCommUDPNode->AddUDPCallback<float>(MinTravScore, manifest::Autonomy::COMMANDS.find("SETMINTRAVSCORE")->second.DATA_ID);
            network::g_pRoveCommUDPNode->AddUDPCallback<float>(BetaBias, manifest::Autonomy::COMMANDS.find("SETBETABIAS")->second.DATA_ID);
        }

        // Log initialization message.
        LOG_INFO(logging::g_qSharedLogger, "GeoPlanner initialized with tile size: {} meters", std::to_string(dTileSize));
    }

◆ ~GeoPlanner()

pathplanners::GeoPlanner::~GeoPlanner ( )

Destroy the Geo Planner:: Geo Planner object.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-27

    {
        // Destructor
    }

Member Function Documentation

◆ PlanPath()

std::vector< geoops::Waypoint > pathplanners::GeoPlanner::PlanPath	(	LiDARHandler *	pLiDARHandler,
		const geoops::UTMCoordinate &	stStart,
		const geoops::UTMCoordinate &	stEnd,
		double	dSearchRadius = `2.0`,
		double	dMaxSearchTimeSeconds = `240.0`,
		bool	bPlotPath = `false`
	)

Plan a path from the start to the end UTM coordinates using A* algorithm.

Parameters

pLiDARHandler	- Pointer to the LiDARHandler instance for fetching geospatial data.
stStart	- The starting UTM coordinate.
stEnd	- The ending UTM coordinate.
dBeta	- A bias factor for traversal score weighting. Higher values favor safer paths with better trav_scores.
dSearchRadius	- The radius in meters to search for neighboring points during path planning.
dMaxSearchTimeSeconds	- The maximum time in seconds to spend searching for a path.
bPlotPath	- Whether to plot the planned path and terrain in 3D.

Returns: std::vector<geoops::Waypoint> - The planned path waypoints.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-28

    {
        // Acquire a mutex lock so we don't try to plan multiple paths at the same time.
        std::lock_guard<std::mutex> lkPathLock(m_muPathGenMutex);

        // Initialize member variables.
        m_pLiDARHandler         = pLiDARHandler;
        m_dSearchRadius         = dSearchRadius;
        m_dMaxSearchTimeSeconds = dMaxSearchTimeSeconds;

        // Submit logger message.
        LOG_NOTICE(logging::g_qSharedLogger,
                   "Starting GeoPlanner path planning from ({:.2f}, {:.2f}) to ({:.2f}, {:.2f}) with beta: {}, search radius: {} meters, min traversal score: {}.",
                   stStart.dEasting,
                   stStart.dNorthing,
                   stEnd.dEasting,
                   stEnd.dNorthing,
                   m_dBeta,
                   m_dSearchRadius,
                   m_dMinTravScore);

        // Validate beta to avoid accidental disabling.
        if (m_dBeta <= 0.0)
        {
            m_dBeta = 0.001;
            LOG_WARNING(logging::g_qSharedLogger, "GeoPlanner: supplied dBeta {} invalid; using fallback 0.001.", m_dBeta);
        }

        // Store the start time.
        std::chrono::time_point<std::chrono::high_resolution_clock> tmStartTime = std::chrono::high_resolution_clock::now();

        // Initialize search for new start and end points.
        this->InitializeSearch(stStart, stEnd);
        // Track time taken to initialize search.
        std::chrono::time_point<std::chrono::high_resolution_clock> tmAfterInit = std::chrono::high_resolution_clock::now();
        std::chrono::duration<double> dInitDuration                             = tmAfterInit - tmStartTime;
        LOG_INFO(logging::g_qSharedLogger, "GeoPlanner search initialization took {:.6f} seconds.", dInitDuration.count());

        // Run A* search algorithm.
        this->SearchAStar();
        // Track time taken to perform search.
        std::chrono::time_point<std::chrono::high_resolution_clock> tmAfterSearch = std::chrono::high_resolution_clock::now();
        std::chrono::duration<double> dSearchDuration                             = tmAfterSearch - tmAfterInit;
        LOG_INFO(logging::g_qSharedLogger, "GeoPlanner A* search took {:.6f} seconds.", dSearchDuration.count());

        // Reconstruct the path from the predecessor map.
        std::vector<geoops::Waypoint> vPath = this->ReconstructPath();
        // Track total time taken for path planning.
        std::chrono::time_point<std::chrono::high_resolution_clock> tmEndTime = std::chrono::high_resolution_clock::now();
        std::chrono::duration<double> dTotalDuration                          = tmEndTime - tmAfterSearch;
        LOG_INFO(logging::g_qSharedLogger, "GeoPlanner path reconstruction took {:.6f} seconds.", dTotalDuration.count());

        // Log the total time taken for path planning.
        std::chrono::duration<double> dOverallDuration = tmEndTime - tmStartTime;
        LOG_NOTICE(logging::g_qSharedLogger, "GeoPlanner total path planning took {:.6f} seconds. Path is {} waypoints long.", dOverallDuration.count(), vPath.size());

        // Plot the path and terrain if requested.
        if (bPlotPath && !vPath.empty())
        {
            this->PlotPathAndTerrain(vPath);
        }
        else if (bPlotPath && vPath.empty())
        {
            LOG_WARNING(logging::g_qSharedLogger, "No path to plot.");
        }

        return vPath;
    }

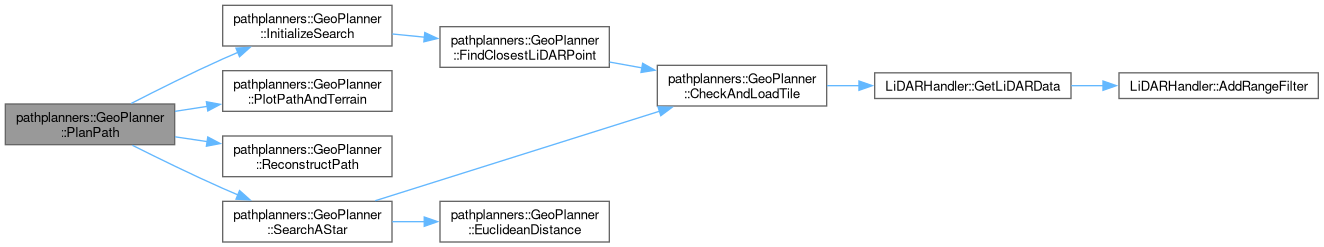

Here is the call graph for this function:

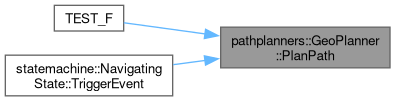

Here is the caller graph for this function:

◆ ClearGeoCache()

void pathplanners::GeoPlanner::ClearGeoCache ( )

Clear all cached tiles and KD-Tree data.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-27

    {
        // Acquire a mutex lock so we don't try to clear cache while planning a path.
        std::lock_guard<std::mutex> lkResourceLock(m_muPathGenMutex);

        // Clear all cached tiles and KD-Tree data.
        m_umTileMapCache.clear();
    }

◆ SetTileSize()

void pathplanners::GeoPlanner::SetTileSize ( double dTileSize )

Set the size of each tile in meters.

Parameters

dTileSize - The new tile size in meters.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-10-28

    {
        m_dTileSize = dTileSize;
    }

◆ SetMinTravScore()

void pathplanners::GeoPlanner::SetMinTravScore ( double dMinTravScore )

Set the minimum traversal score for path planning.

Parameters

dMinTravScore - The new minimum traversal score.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-10-28

    {
        m_dMinTravScore = dMinTravScore;
    }

◆ SetBetaBias()

void pathplanners::GeoPlanner::SetBetaBias ( double dBetaBias )

Set the beta bias for travel scores in path planning.

Parameters

dBetaBias - The new beta bias value.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-10-28

    {
        m_dBeta = dBetaBias;
    }

◆ GetTileSize()

double pathplanners::GeoPlanner::GetTileSize ( ) const

Get the size of each tile in meters.

Returns: double - The current tile size in meters.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-10-28

    {
        return m_dTileSize;
    }

◆ GetMinTravScore()

double pathplanners::GeoPlanner::GetMinTravScore ( ) const

Get the minimum traversal score for path planning.

Returns: double - The current minimum traversal score.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-10-28

    {
        return m_dMinTravScore;
    }

◆ GetBetaBias()

double pathplanners::GeoPlanner::GetBetaBias ( ) const

Get the beta bias for travel scores in path planning.

Returns: double - The current beta bias value.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-10-28

    {
        return m_dBeta;
    }

◆ InitializeSearch()

bool pathplanners::GeoPlanner::InitializeSearch	(	const geoops::UTMCoordinate &	stStart,
		const geoops::UTMCoordinate &	stEnd
	)

private

Initialize the search by caching the start and end tiles and setting up initial states.

Parameters

stStart	- The starting UTM coordinate.
stEnd	- The ending UTM coordinate.

Returns: true - Initialization successful.; false - Initialization failed due to invalid start or end points.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-27

    {
        // Clear previous search data.
        m_umAllStates.clear();
        m_umPredecessors.clear();
        m_usClosedSet.clear();
        while (!m_pqOpenSetNextBest.empty())
        {
            m_pqOpenSetNextBest.pop();
        }
        // Reset start and end IDs.
        m_nStartID = -1;
        m_nEndID   = -1;
        // Clear KD-Tree.
        m_usKDTreeInsertedTiles.clear();
        m_pKDTree->clear();

        // Cache the start and end tiles and update ID values.
        PlannerState stStartState = FindClosestLiDARPoint(stStart);
        PlannerState stEndState   = FindClosestLiDARPoint(stEnd);
        m_nStartID                = stStartState.nID;
        m_nEndID                  = stEndState.nID;

        // Check if valid start and end points were found.
        if (m_nStartID == -1 || m_nEndID == -1)
        {
            LOG_ERROR(logging::g_qSharedLogger, "Invalid start or end point for path planning. Start ID: {}, End ID: {}.", m_nStartID, m_nEndID);
            return false;
        }

        // Log the chosen start and end UTM positions.
        LOG_INFO(logging::g_qSharedLogger,
                 "GeoPlanner initialized search with Start ID: {} at ({:.2f}, {:.2f}), End ID: {} at ({:.2f}, {:.2f}).",
                 m_nStartID,
                 stStartState.dEasting,
                 stStartState.dNorthing,
                 m_nEndID,
                 stEndState.dEasting,
                 stEndState.dNorthing);

        return true;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SearchAStar()

void pathplanners::GeoPlanner::SearchAStar ( )

private

Perform the A* search algorithm to find the optimal path.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-28

    {
        // Store the start time.
        std::chrono::high_resolution_clock::time_point tmStartTime = std::chrono::high_resolution_clock::now();

        // Initialize the start state.
        PlannerState stStartState = m_umAllStates[m_nStartID];
        stStartState.dGCost       = 0.0;
        // Heuristic cost (Euclidean distance to goal).
        stStartState.dHCost = this->EuclideanDistance(stStartState.dEasting,
                                                      stStartState.dNorthing,
                                                      stStartState.dAltitude,
                                                      m_umAllStates[m_nEndID].dEasting,
                                                      m_umAllStates[m_nEndID].dNorthing,
                                                      m_umAllStates[m_nEndID].dAltitude);
        // Cumulative traversal score starts as the start point's score.
        m_umAllStates[m_nStartID] = stStartState;

        // Push start into the open set priority queue.
        m_pqOpenSetNextBest.push(m_umAllStates[m_nStartID]);

        // Main A* search loop.
        while (!m_pqOpenSetNextBest.empty())
        {
            // Get the node in the open set with the lowest f = g + h cost.
            PlannerState stCurrentState = m_pqOpenSetNextBest.top();
            // Remove the current node from the open set.
            m_pqOpenSetNextBest.pop();

            // Check stale: compare popped.g to canonical g in m_umAllStates.
            std::unordered_map<int, pathplanners::GeoPlanner::PlannerState>::iterator itState = m_umAllStates.find(stCurrentState.nID);
            if (itState == m_umAllStates.end())
            {
                continue;    // This is unexpected, but skip if not found.
            }
            // If the popped state has a higher G cost than the recorded state, it's stale.
            if (stCurrentState.dGCost > itState->second.dGCost + 1e-9)
            {
                // Stale entry: we previously found a better path and pushed that copy.
                continue;
            }

            // If we've already evaluated it (closed set), skip.
            if (m_usClosedSet.find(stCurrentState.nID) != m_usClosedSet.end())
            {
                continue;
            }

            // If we reached the goal.
            if (stCurrentState.nID == m_nEndID)
            {
                LOG_INFO(logging::g_qSharedLogger, "Goal reached in A* search.");
                return;
            }

            // Mark the current node as evaluated by adding it to the closed set.
            m_usClosedSet.insert(stCurrentState.nID);

            // Ensure the tile containing the current state is loaded.
            this->CheckAndLoadTile(stCurrentState);

            // Query the KDTree to get the neighbors in the given search radius.
            std::vector<LiDARHandler::PointRow> vNeighbors;
            KDQueryPoint stQueryPoint{stCurrentState.dEasting, stCurrentState.dNorthing};
            m_pKDTree->find_within_range(stQueryPoint, m_dSearchRadius, std::back_inserter(vNeighbors));

            // Loop through the neighboring points within the radius.
            for (LiDARHandler::PointRow& stPoint : vNeighbors)
            {
                // Skip if this neighbor is already in the closed set.
                if (m_usClosedSet.find(stPoint.nID) != m_usClosedSet.end())
                {
                    continue;    // Already evaluated.
                }

                /*
                    Calculate the tentative G cost for this neighbor.
                */
                // Calculate Euclidean distance to neighbor.
                double dDistance = this->EuclideanDistance(stCurrentState.dEasting,
                                                           stCurrentState.dNorthing,
                                                           stCurrentState.dAltitude,
                                                           stPoint.dEasting,
                                                           stPoint.dNorthing,
                                                           stPoint.dAltitude);
                // Clamp traversal score [0,1] just to be safe.
                double dScore = std::clamp(stPoint.dTraversalScore, 0.0, 1.0);
                // Calculate cost multiplier based on traversal score and beta.
                double dMultiplier = 1.0 + m_dBeta * (1.0 - dScore);    // <1 not needed; this is >=1
                // Calculate tentative G cost.
                double dTentativeGCost = stCurrentState.dGCost + dDistance * dMultiplier;

                // If this neighbor is not in the open set or we found a better path to it.
                std::unordered_map<int, PlannerState>::const_iterator itNeighborState = m_umAllStates.find(stPoint.nID);
                // If this path to neighbor is better, update its state.
                if (itNeighborState == m_umAllStates.end() || dTentativeGCost + 1e-12 < itNeighborState->second.dGCost)
                {
                    // Update the neighbor's state.
                    PlannerState stNeighborState;
                    stNeighborState.nID                   = stPoint.nID;
                    stNeighborState.dEasting              = stPoint.dEasting;
                    stNeighborState.dNorthing             = stPoint.dNorthing;
                    stNeighborState.dAltitude             = stPoint.dAltitude;
                    stNeighborState.nZone                 = std::stoi(stPoint.szZone.substr(0, 2));    // Assuming zone is stored as string.
                    stNeighborState.bInNorthernHemisphere = (stPoint.dNorthing >= 0);                  // Simple check based on northing.
                    stNeighborState.dGCost                = dTentativeGCost;
                    // Heuristic cost (Euclidean distance to goal).
                    stNeighborState.dHCost = this->EuclideanDistance(stNeighborState.dEasting,
                                                                     stNeighborState.dNorthing,
                                                                     stNeighborState.dAltitude,
                                                                     m_umAllStates[m_nEndID].dEasting,
                                                                     m_umAllStates[m_nEndID].dNorthing,
                                                                     m_umAllStates[m_nEndID].dAltitude);

                    // Update the state map.
                    m_umAllStates[stPoint.nID] = stNeighborState;
                    // Update the predecessor map.
                    m_umPredecessors[stPoint.nID] = stCurrentState.nID;

                    // Add the neighbor to the open set. Duplicates are handled by checking the cost when popping.
                    m_pqOpenSetNextBest.push(stNeighborState);
                }
            }

            // Log progress every 100 iterations.
            if (m_usClosedSet.size() % 1000 == 0)
            {
                LOG_INFO(logging::g_qSharedLogger, "A* search progress: {} nodes evaluated.", m_usClosedSet.size());
            }

            // Check if we've exceeded the maximum search time.
            std::chrono::high_resolution_clock::time_point tmCurrentTime = std::chrono::high_resolution_clock::now();
            std::chrono::duration<double> dElapsedTime                   = tmCurrentTime - tmStartTime;
            if (dElapsedTime.count() >= m_dMaxSearchTimeSeconds)
            {
                LOG_WARNING(logging::g_qSharedLogger, "A* search terminated after exceeding max search time of {} seconds.", m_dMaxSearchTimeSeconds);
                return;
            }
        }
    }

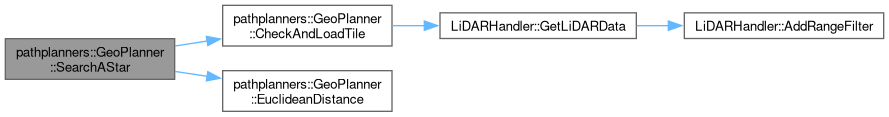

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReconstructPath()

std::vector< geoops::Waypoint > pathplanners::GeoPlanner::ReconstructPath ( ) const

private

Plan a path from the start to the end UTM coordinates using A* algorithm.

Returns: std::vector<geoops::Waypoint> - The planned path as a vector of waypoints.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-27

    {
        // Create instance variables.
        std::vector<geoops::Waypoint> vPath;
        int nCurrentID = m_nEndID;

        // If the goal wasn't reached, return an empty path.
        if (m_umPredecessors.find(m_nEndID) == m_umPredecessors.end())
        {
            LOG_WARNING(logging::g_qSharedLogger, "Path was not found.");
            return {};
        }

        // Backtrack from the end node to the start node using the cameFrom map.
        while (true)
        {
            // Add the current node ID to the path.
            std::unordered_map<int, PlannerState>::const_iterator itPlannerState = m_umAllStates.find(nCurrentID);
            if (itPlannerState != m_umAllStates.end())
            {
                // Found the PlannerState for this point ID.
                const PlannerState& stState = itPlannerState->second;
                // Convert PlannerState to Waypoint and add to path.
                vPath.emplace_back(geoops::UTMCoordinate(stState.dEasting, stState.dNorthing, stState.nZone, stState.bInNorthernHemisphere, stState.dAltitude),
                                   geoops::WaypointType::eNavigationWaypoint,
                                   0.5,
                                   stState.nID);
            }
            else
            {
                // Submit logger message.
                LOG_WARNING(logging::g_qSharedLogger, "PlannerState for point ID {} not found during path reconstruction.", nCurrentID);
            }

            // If we've reached the start node, break the loop.
            if (nCurrentID == m_nStartID)
            {
                break;
            }

            // Look at the predecessor map to get the parent node ID.
            nCurrentID = m_umPredecessors.at(nCurrentID);
        }

        // Reverse the path to get it from start to end.
        std::reverse(vPath.begin(), vPath.end());

        return vPath;
    }

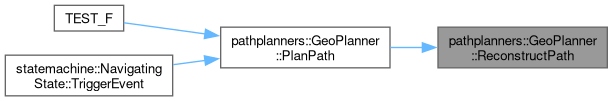

Here is the caller graph for this function:

◆ CheckAndLoadTile()

void pathplanners::GeoPlanner::CheckAndLoadTile ( const PlannerState & stCurrentState )

private

Check if the tile containing the current state is loaded, and if not, load it.

Parameters

stCurrentState - The current planner state.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-25

    {
        // Determine which tile the current state is in.
        int nTileX = static_cast<int>(std::floor(stCurrentState.dEasting / m_dTileSize));
        int nTileY = static_cast<int>(std::floor(stCurrentState.dNorthing / m_dTileSize));
        TileKey stTileKey{nTileX, nTileY};

        // Check if the tile is already loaded.
        if (m_umTileMapCache.find(stTileKey) == m_umTileMapCache.end())
        {
            // Tile is not loaded, so we need to load it.
            LiDARHandler::PointFilter stFilter;
            stFilter.dEasting        = (nTileX + 0.5) * m_dTileSize;                                      // Center of the tile in easting.
            stFilter.dNorthing       = (nTileY + 0.5) * m_dTileSize;                                      // Center of the tile in northing.
            stFilter.dRadius         = std::sqrt(2) * (m_dTileSize / 2.0);                                // Radius to cover the entire tile
            stFilter.dTraversalScore = LiDARHandler::PointFilter::Range<double>{m_dMinTravScore, 1.0};    // Only load points with sufficient traversal score.
            std::vector<LiDARHandler::PointRow> vTilePoints = m_pLiDARHandler->GetLiDARData(stFilter);

            // Check if we got any points back.
            if (vTilePoints.empty())
            {
                // Log warning message.
                LOG_WARNING(logging::g_qSharedLogger, "No LiDAR points found in tile ({}, {}).", nTileX, nTileY);
                return;
            }

            // First, we insert the points into the tile cache.
            m_umTileMapCache[stTileKey] = vTilePoints;

            // Log info message.
            LOG_DEBUG(logging::g_qSharedLogger, "Loaded tile ({}, {}) with {} points into cache.", nTileX, nTileY, vTilePoints.size());
        }

        // Check if this tile is already loaded into the KD-Tree.
        if (m_usKDTreeInsertedTiles.find(stTileKey) == m_usKDTreeInsertedTiles.end())
        {
            // Get the points for this tile from the cache.
            std::vector<LiDARHandler::PointRow>& vTilePoints = m_umTileMapCache[stTileKey];
            // Next, we will insert the points into the KD-Tree for fast spatial queries.
            for (LiDARHandler::PointRow& stLiDARPoint : vTilePoints)
            {
                // Insert this point into the KDTree.
                m_pKDTree->insert(stLiDARPoint);

                /*
                    Add tile points with IDs to the all states map.
                */
                // Convert the szZone ("15S") to an integer zone number (15) and hemisphere (true/false, north/south).
                int nZoneNumber            = std::stoi(stLiDARPoint.szZone.substr(0, 2));
                bool bIsNorthernHemisphere = stLiDARPoint.dNorthing >= 0;    // Simple check based on northing.

                // Don't check if it's already there, just assign to overwrite if it is.
                m_umAllStates[stLiDARPoint.nID] = PlannerState{stLiDARPoint.nID,
                                                               stLiDARPoint.dEasting,
                                                               stLiDARPoint.dNorthing,
                                                               stLiDARPoint.dAltitude,
                                                               nZoneNumber,
                                                               bIsNorthernHemisphere,
                                                               std::numeric_limits<double>::infinity(),
                                                               0.0};
            }
            // Mark this tile as loaded into the KD-Tree.
            m_usKDTreeInsertedTiles.insert(stTileKey);

            /*
                Optimize the KD-Tree after bulk insertion.

                We don't want to optimize too often, so we'll just check the count of the
                inserted tiles and optimize every so tiles loaded.
            */
            if (m_usKDTreeInsertedTiles.size() % 100 == 0)
            {
                m_pKDTree->optimize();
                LOG_INFO(logging::g_qSharedLogger, "Optimized KD-Tree after loading {} tiles.", m_usKDTreeInsertedTiles.size());
            }

            // Log info message.
            LOG_DEBUG(logging::g_qSharedLogger, "Loaded tile ({}, {}) with {} points into KD-Tree.", nTileX, nTileY, vTilePoints.size());
        }
    }

Here is the call graph for this function:

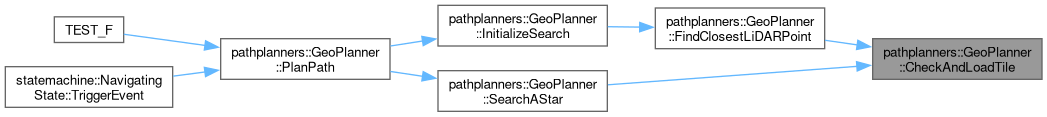

Here is the caller graph for this function:

◆ FindClosestLiDARPoint()

GeoPlanner::PlannerState pathplanners::GeoPlanner::FindClosestLiDARPoint ( const geoops::UTMCoordinate & stCoordinate )

private

Find the closest LiDAR point to the given UTM coordinate.

Parameters

stCoordinate - The UTM coordinate to find the closest LiDAR point to.

Returns: GeoPlanner::PlannerState - The PlannerState representing the closest LiDAR point.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-25

    {
        // Create instance variables.
        PlannerState stClosestPoint;

        // First, we need to check to make sure that the tile our given coordinate lies in is loaded.
        CheckAndLoadTile(PlannerState{-1, stCoordinate.dEasting, stCoordinate.dNorthing, stCoordinate.dAltitude});

        // Now we can perform a nearest neighbor search in the KD-Tree.
        KDQueryPoint stQueryPoint{stCoordinate.dEasting, stCoordinate.dNorthing};
        std::pair<pathplanners::KDTree2D::const_iterator, pathplanners::PointKDAccessor::result_type> tpResult = m_pKDTree->find_nearest(stQueryPoint);
        if (tpResult.first != m_pKDTree->end())
        {
            // We found a nearest neighbor, populate the PlannerState.
            const LiDARHandler::PointRow& stNearestPoint = *(tpResult.first);
            stClosestPoint.nID                           = stNearestPoint.nID;
            stClosestPoint.dEasting                      = stNearestPoint.dEasting;
            stClosestPoint.dNorthing                     = stNearestPoint.dNorthing;
            stClosestPoint.dAltitude                     = stNearestPoint.dAltitude;
            stClosestPoint.dGCost                        = std::numeric_limits<double>::infinity();
            stClosestPoint.dHCost                        = 0.0;    // H cost will be calculated later.
        }
        else
        {
            // No nearest neighbor found, log an error.
            LOG_ERROR(logging::g_qSharedLogger, "No nearest LiDAR point found for coordinate ({}, {}).", stCoordinate.dEasting, stCoordinate.dNorthing);
        }

        return stClosestPoint;
    }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PlotPathAndTerrain()

void pathplanners::GeoPlanner::PlotPathAndTerrain ( const std::vector< geoops::Waypoint > & vPath ) const

private

Plot the given path and the terrain points that the path goes through.

Parameters

vPath - The vector of waypoints representing the path to plot.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-09-25

    {
        // Clear the current layers of the path.
        m_pPathTracer->ClearLayer("TerrainPoints");
        m_pPathTracer->ClearLayer("RoverPath");

        // Loop through the path and only display the terrain tiles that the path goes through.
        std::unordered_set<TileKey, TileKeyHash, TileKeyEqual> usTilesToPlot;
        for (const geoops::Waypoint& stWaypoint : vPath)
        {
            // Determine which tile this waypoint is in.
            int nTileX = static_cast<int>(std::floor(stWaypoint.GetUTMCoordinate().dEasting / m_dTileSize));
            int nTileY = static_cast<int>(std::floor(stWaypoint.GetUTMCoordinate().dNorthing / m_dTileSize));
            usTilesToPlot.insert(TileKey{nTileX, nTileY});

            // Also check the surrounding tiles to give some context.
            for (int nXOffset = -1; nXOffset <= 1; ++nXOffset)
            {
                for (int nYOffset = -1; nYOffset <= 1; ++nYOffset)
                {
                    usTilesToPlot.insert(TileKey{nTileX + nXOffset, nTileY + nYOffset});
                }
            }
        }

        // Now plot the points from these tiles.
        for (const TileKey& stTileKey : usTilesToPlot)
        {
            std::unordered_map<TileKey, std::vector<LiDARHandler::PointRow>, TileKeyHash, TileKeyEqual>::const_iterator itCachedTile = m_umTileMapCache.find(stTileKey);
            if (itCachedTile != m_umTileMapCache.end())
            {
                // Create instance variables.
                std::vector<geoops::Waypoint> stTerrainWaypoints;
                const std::vector<LiDARHandler::PointRow>& vTilePoints = itCachedTile->second;

                // Subsample the points if there are too many to plot.
                const size_t nMaxPointsToPlot = 10;
                if (vTilePoints.size() > nMaxPointsToPlot)
                {
                    double dSubsampleFactor = static_cast<double>(vTilePoints.size()) / static_cast<double>(nMaxPointsToPlot);
                    std::vector<LiDARHandler::PointRow> vSubsampledPoints;
                    for (size_t i = 0; i < vTilePoints.size(); i += static_cast<size_t>(dSubsampleFactor))
                    {
                        vSubsampledPoints.push_back(vTilePoints[i]);
                    }
                    // Use the subsampled points for plotting.
                    stTerrainWaypoints.reserve(vSubsampledPoints.size());
                    for (const LiDARHandler::PointRow& stPoint : vSubsampledPoints)
                    {
                        // Create a waypoint from the PointRow struct.
                        geoops::Waypoint stWaypoint{geoops::UTMCoordinate(stPoint.dEasting,
                                                                          stPoint.dNorthing,
                                                                          std::stoi(stPoint.szZone.substr(0, 2)),
                                                                          (stPoint.dNorthing >= 0),
                                                                          stPoint.dAltitude),
                                                    geoops::WaypointType::eNavigationWaypoint,
                                                    0.01,
                                                    stPoint.nID};
                        // Add the waypoint to the terrain waypoints vector.
                        stTerrainWaypoints.push_back(stWaypoint);
                    }
                }
                else
                {
                    // Use all points if under the max limit.
                    stTerrainWaypoints.reserve(vTilePoints.size());

                    for (const LiDARHandler::PointRow& stPoint : vTilePoints)
                    {
                        // Create a waypoint from the PointRow struct.
                        geoops::Waypoint stWaypoint{geoops::UTMCoordinate(stPoint.dEasting,
                                                                          stPoint.dNorthing,
                                                                          std::stoi(stPoint.szZone.substr(0, 2)),
                                                                          (stPoint.dNorthing >= 0),
                                                                          stPoint.dAltitude),
                                                    geoops::WaypointType::eNavigationWaypoint,
                                                    0.01,
                                                    stPoint.nID};
                        // Add the waypoint to the terrain waypoints vector.
                        stTerrainWaypoints.push_back(stWaypoint);
                    }
                }

                // Add the waypoints to the path tracer.
                m_pPathTracer->AddDots(stTerrainWaypoints, "TerrainPoints", 0);
            }
        }

        // Finally, add the planned path to the path tracer.
        m_pPathTracer->AddPathPoints(vPath, "RoverPath", 0);
    }

Here is the caller graph for this function:

◆ EuclideanDistance()

double pathplanners::GeoPlanner::EuclideanDistance	(	double	dEasting1,
		double	dNorthing1,
		double	Altitude1,
		double	dEasting2,
		double	dNorthing2,
		double	Altitude2
	)		const

private

Calculate the distance between two UTM coordinates.

Parameters

dEasting1	- The easting of the first point.
dNorthing1	- The northing of the first point.
Altitude1	- The altitude of the first point.
dEasting2	- The easting of the second point.
dNorthing2	- The northing of the second point.
Altitude2	- The altitude of the second point.

Returns: double - The distance between the two points.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2025-10-20

    {
        // Calculate distance between two points.
        double dDiffX = dEasting1 - dEasting2;
        double dDiffY = dNorthing1 - dNorthing2;
        double dDiffZ = Altitude1 - Altitude2;

        return std::sqrt(dDiffX * dDiffX + dDiffY * dDiffY + dDiffZ * dDiffZ);
    }

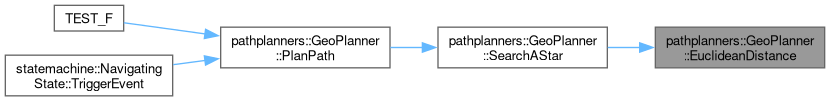

Here is the caller graph for this function:

Member Data Documentation

◆ MinTravScore

const std::function<void(const rovecomm::RoveCommPacket<float>&, const sockaddr_in&)> pathplanners::GeoPlanner::MinTravScore

private

Initial value:

=
                [this](const rovecomm::RoveCommPacket<float>& stPacket, const sockaddr_in& stdAddr)
            {

                (void) stdAddr;


                if (stPacket.vData.size() > 0)
                {

                    m_dMinTravScore = static_cast<double>(stPacket.vData[0]);

                    this->ClearGeoCache();


                    LOG_NOTICE(logging::g_qSharedLogger,
                               "Incoming Packet: Setting GeoPlanner minimum travel score to {}. The tile cache has also been cleared.",
                               this->m_dMinTravScore);
                }
            }

Callback function used to set the minimum travel score for path planning.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2024-04-04

            {
                // Not using this.
                (void) stdAddr;

                // Set minimum travel score from incoming packet.
                if (stPacket.vData.size() > 0)
                {
                    // Set minimum travel score.
                    m_dMinTravScore = static_cast<double>(stPacket.vData[0]);
                    // Clear the tile cache.
                    this->ClearGeoCache();

                    // Submit logger message.
                    LOG_NOTICE(logging::g_qSharedLogger,
                               "Incoming Packet: Setting GeoPlanner minimum travel score to {}. The tile cache has also been cleared.",
                               this->m_dMinTravScore);
                }
            };

◆ BetaBias

const std::function<void(const rovecomm::RoveCommPacket<float>&, const sockaddr_in&)> pathplanners::GeoPlanner::BetaBias

private

Initial value:

=
                [this](const rovecomm::RoveCommPacket<float>& stPacket, const sockaddr_in& stdAddr)
            {

                (void) stdAddr;


                if (stPacket.vData.size() > 0)
                {
                    m_dBeta = static_cast<double>(stPacket.vData[0]);

                    LOG_NOTICE(logging::g_qSharedLogger, "Incoming Packet: Setting GeoPlanner beta bias to {}", this->m_dBeta);
                }
            }

Callback function used to set the beta bias for travel scores in path planning.

Author: clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date: 2024-04-04

            {
                // Not using this.
                (void) stdAddr;

                // Set minimum travel score from incoming packet.
                if (stPacket.vData.size() > 0)
                {
                    m_dBeta = static_cast<double>(stPacket.vData[0]);
                    // Submit logger message.
                    LOG_NOTICE(logging::g_qSharedLogger, "Incoming Packet: Setting GeoPlanner beta bias to {}", this->m_dBeta);
                }
            };

The documentation for this class was generated from the following files:

src/algorithms/planners/GeoPlanner.h
src/algorithms/planners/GeoPlanner.cpp

Classes

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ GeoPlanner()

◆ ~GeoPlanner()

Member Function Documentation

◆ PlanPath()

◆ ClearGeoCache()

◆ SetTileSize()

◆ SetMinTravScore()

◆ SetBetaBias()

◆ GetTileSize()

◆ GetMinTravScore()

◆ GetBetaBias()

◆ InitializeSearch()

◆ SearchAStar()

◆ ReconstructPath()

◆ CheckAndLoadTile()

◆ FindClosestLiDARPoint()

◆ PlotPathAndTerrain()

◆ EuclideanDistance()

Member Data Documentation

◆ MinTravScore

◆ BetaBias
