torchtag Namespace Reference

Namespace containing functions related to torch tag detections operations on images using PyTorch. More...

Functions

std::vector< tagdetectutils::ArucoTag > Detect (const cv::Mat &cvFrame, yolomodel::pytorch::PyTorchInterpreter &trPyTorchDetector, const float fMinObjectConfidence=0.40f, const float fNMSThreshold=0.60f)
 Detect ArUco tags in the provided image using a YOLO DNN model.

void DrawDetections (cv::Mat &cvDetectionsFrame, const std::vector< tagdetectutils::ArucoTag > &vDetectedTags)
 Given a vector of tagdetectutils::ArucoTag structs draw each tag corner and confidence onto the given image.


Detailed Description

Namespace containing functions related to torch tag detections operations on images using PyTorch.

Author
clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)
Date
2025-02-13

Function Documentation

◆ Detect()

std::vector< tagdetectutils::ArucoTag > torchtag::Detect ( const cv::Mat &  cvFrame,
yolomodel::pytorch::PyTorchInterpreter &  trPyTorchDetector,
const float  fMinObjectConfidence = 0.40f,
const float  fNMSThreshold = 0.60f
)
inline

Detect ArUco tags in the provided image using a YOLO DNN model.

Parameters
cvFrame- The RGB camera frame to run detection on.
trPyTorchDetector- The PyTorch model interpreter to run inference on.
fMinObjectConfidence- The minimum confidence required for an object to be considered a valid detection.
fNMSThreshold- The threshold for Non-Maximum Suppression, controlling overlap between bounding box predictions.
Returns
std::vector<tagdetectutils::ArucoTag> - The resultant vector containing the detected tags in the frame.
Author
clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)
Date
2025-02-13
49 {
50 // Check if the input frame is in RGB format.
51 if (cvFrame.channels() != 3)
52 {
53 // Submit logger message.
54 LOG_ERROR(logging::g_qSharedLogger, "Detect() requires a RGB image.");
55 return {};
56 }
57
58 // Declare instance variables.
59 std::vector<tagdetectutils::ArucoTag> vDetectedTags;
60
61 // Check if the PyTorch interpreter hardware is opened and the model is loaded.
62 if (trPyTorchDetector.IsReadyForInference())
63 {
64 // Run inference on YOLO model with current image.
65 std::vector<yolomodel::Detection> vOutputTensorTags = trPyTorchDetector.Inference(cvFrame, fMinObjectConfidence, fNMSThreshold);
66
67 // Repackage detections into tensorflow tags.
68 for (const yolomodel::Detection& stTagDetection : vOutputTensorTags)
69 {
70 // Create and initialize new TensorflowTag.
71 tagdetectutils::ArucoTag stDetectedTag;
72 stDetectedTag.dConfidence = stTagDetection.fConfidence;
73 stDetectedTag.pBoundingBox = std::make_shared<cv::Rect2d>(stTagDetection.cvBoundingBox);
74 stDetectedTag.nID = stTagDetection.nClassID;
75 stDetectedTag.szClassName = stTagDetection.szClassName;
76 stDetectedTag.eDetectionMethod = tagdetectutils::TagDetectionMethod::eTorch;
77 stDetectedTag.cvImageResolution = cvFrame.size();
78
79 // Add the newly detected tag to the vector.
80 vDetectedTags.emplace_back(stDetectedTag);
81 }
82 }
83 else
84 {
85 // Submit logger message.
86 LOG_WARNING(logging::g_qSharedLogger,
87 "TorchDetect: Unable to detect tags using YOLO torch detection because hardware is not opened or model is not initialized.");
88 }
89
90 // Return the detected tags.
91 return vDetectedTags;
92 }
cv::Mat::size
MatSize size
cv::Mat::channels
int channels() const
yolomodel::pytorch::PyTorchInterpreter::IsReadyForInference
bool IsReadyForInference() const
Check if the model is ready for inference.
Definition YOLOModel.hpp:946
yolomodel::pytorch::PyTorchInterpreter::Inference
std::vector< Detection > Inference(const cv::Mat &cvInputFrame, const float fMinObjectConfidence=0.85, const float fNMSThreshold=0.6)
Given an input image forward the image through the YOLO model to run inference on the PyTorch model,...
Definition YOLOModel.hpp:859
tagdetectutils::ArucoTag
Represents a single ArUco tag. Combines attributes from TorchTag, TensorflowTag, and the original Aru...
Definition TagDetectionUtilty.hpp:59
yolomodel::Detection
This struct is used to.
Definition YOLOModel.hpp:45

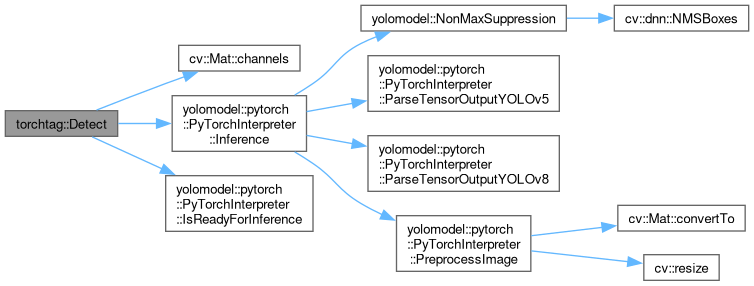

Here is the call graph for this function:
Here is the caller graph for this function:

◆ DrawDetections()

void torchtag::DrawDetections ( cv::Mat &  cvDetectionsFrame,
const std::vector< tagdetectutils::ArucoTag > &  vDetectedTags
)
inline

Given a vector of tagdetectutils::ArucoTag structs draw each tag corner and confidence onto the given image.

Parameters
cvDetectionsFrame- The frame to draw overlay onto.
vDetectedTags- The vector of tagdetectutils::ArucoTag structs used to draw tag corners and confidences onto image.
Author
clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)
Date
2025-02-13
104 {
105 // Check if the given frame is a 1 or 3 channel image. (not BGRA)
106 if (!cvDetectionsFrame.empty() && (cvDetectionsFrame.channels() == 1 || cvDetectionsFrame.channels() == 3))
107 {
108 // Loop through each detection.
109 for (const tagdetectutils::ArucoTag& stTag : vDetectedTags)
110 {
111 // Check if the tag detection type is Torch.
112 if (stTag.eDetectionMethod == tagdetectutils::TagDetectionMethod::eTorch)
113 {
114 // Draw bounding box onto image.
115 cv::rectangle(cvDetectionsFrame, *stTag.pBoundingBox, cv::Scalar(255, 255, 255), 2);
116 std::string szText = stTag.szClassName + " " + std::to_string(static_cast<int>(stTag.dConfidence * 100)) + "%";
117 cv::Size cvTextSize = cv::getTextSize(szText, cv::FONT_HERSHEY_SIMPLEX, 0.75, 1, nullptr);
118 // Draw classID background box onto image.
119 cv::rectangle(cvDetectionsFrame,
120 stTag.pBoundingBox->tl() + cv::Point2d(0, stTag.pBoundingBox->height),
121 stTag.pBoundingBox->tl() + cv::Point2d(cvTextSize.width, stTag.pBoundingBox->height + cvTextSize.height),
122 cv::Scalar(255, 255, 255),
123 cv::FILLED);
124 // Draw class text onto image.
125 cv::putText(cvDetectionsFrame,
126 szText,
127 stTag.pBoundingBox->tl() + cv::Point2d(0, stTag.pBoundingBox->height + cvTextSize.height),
128 cv::FONT_HERSHEY_SIMPLEX,
129 0.5,
130 cv::Scalar(0, 0, 0));
131 }
132 }
133 }
134 else
135 {
136 // Submit logger message.
137 LOG_ERROR(logging::g_qSharedLogger,
138 "TorchDetect: Unable to draw markers on image because it is empty or because it has {} channels. (Should be 1 or 3)",
139 cvDetectionsFrame.channels());
140 }
141 }
cv::Mat::empty
bool empty() const
Point_< double >
Scalar_< double >
cv::Size_
cv::Size_::height
_Tp height
cv::Size_::width
_Tp width
cv::rectangle
void rectangle(InputOutputArray img, Point pt1, Point pt2, const Scalar &color, int thickness=1, int lineType=LINE_8, int shift=0)
cv::getTextSize
Size getTextSize(const String &text, int fontFace, double fontScale, int thickness, int *baseLine)
cv::putText
void putText(InputOutputArray img, const String &text, Point org, int fontFace, double fontScale, Scalar color, int thickness=1, int lineType=LINE_8, bool bottomLeftOrigin=false)
cv::FONT_HERSHEY_SIMPLEX
FONT_HERSHEY_SIMPLEX
cv::FILLED
FILLED

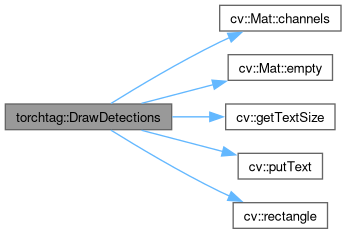

Here is the call graph for this function:
