searchpattern Namespace Reference

Namespace containing algorithms related to calculating drive powers, odometry, trajectories, kinematics, etc of search pattern. More...

Functions
std::vector< geoops::Waypoint >	CalculateSpiralPatternWaypoints (const geoops::UTMCoordinate &stStartingPoint, const double dAngularStepDegrees=57, const double dMaxRadius=25, const double dStartingHeadingDegrees=0, const double dStartSpacing=1)
	Perform a spiral search pattern starting from a given point.
std::vector< geoops::Waypoint >	CalculateSpiralPatternWaypoints (const geoops::GPSCoordinate &stStartingPoint, const double dAngularStepDegrees=57, const double dMaxRadius=25, const double dStartingHeadingDegrees=0, const double dStartSpacing=1)
	Perform a spiral search pattern starting from a given point.
std::vector< geoops::Waypoint >	CalculateZigZagPatternWaypoints (const geoops::UTMCoordinate &stCenterPoint, const double dWidth=20.0, const double dHeight=20.0, const double dSpacing=1.0, const bool bVertical=true)
	Calculate waypoints for a zigzag pattern. This function generates waypoints for a zigzag pattern starting from a given point with configurable width, height, and spacing. The direction of the zigzag pattern (vertical or horizontal) can be specified.
std::vector< geoops::Waypoint >	CalculateZigZagPatternWaypoints (const geoops::GPSCoordinate &stCenterPoint, const double dWidth=20.0, const double dHeight=20.0, const double dSpacing=1.0, const bool bVertical=true)
	Calculate waypoints for a zigzag pattern. This function generates waypoints for a zigzag pattern starting from a given point with configurable width, height, and spacing. The direction of the zigzag pattern (vertical or horizontal) can be specified.

Detailed Description

Namespace containing algorithms related to calculating drive powers, odometry, trajectories, kinematics, etc of search pattern.

Author

Jacob V (jpvf2.nosp@m.d@um.nosp@m.syste.nosp@m.m.ed.nosp@m.u)

Date

2024-02-04

Function Documentation

CalculateSpiralPatternWaypoints() [1/2]

std::vector< geoops::Waypoint > searchpattern::CalculateSpiralPatternWaypoints ( const geoops::UTMCoordinate &  stStartingPoint, const double  dAngularStepDegrees = 57, const double  dMaxRadius = 25, const double  dStartingHeadingDegrees = 0, const double  dStartSpacing = 1  )

inline

Perform a spiral search pattern starting from a given point.

Parameters

stStartingPoint	- The coordinate of the starting point of the search.
dAngularStepDegrees	- The amount the angle is incremented in each iteration of the loop (degrees).
dMaxRadius	- The maximum radius to cover in the search (meters).
dStartingHeadingDegrees	- The angle the rover is facing at the start of the search (degrees).
dStartSpacing	- The spacing between successive points in the spiral (meters). This will become larger as the spiral grows.

Returns

vWaypoints - A vector representing the waypoints forming the spiral search pattern.

Author

Jacob V (jpvf2.nosp@m.d@um.nosp@m.syste.nosp@m.m.ed.nosp@m.u)

Date

2024-02-04

    {
        // Define variables.
        std::vector<geoops::Waypoint> vWaypoints;
        double dAngularStepRadians   = dAngularStepDegrees * M_PI / 180;
        double dAngleRadians         = (dStartingHeadingDegrees + 90) * M_PI / 180;
        double dCurrentSpacingWindUp = 0.0;
        double dStartingX            = stStartingPoint.dEasting;
        double dStartingY            = stStartingPoint.dNorthing;
        double dCurrentRadius        = 0.0;

        // Check if the MaxRadius is less than 1 meter. If so return an empty vector.
        if (dMaxRadius < 1)
        {
            // Submit logger message.
            LOG_WARNING(logging::g_qSharedLogger, "MaxRadius is less than 1 meter. Cannot create spiral pattern.");
            return vWaypoints;
        }

        // Calculate each waypoint. Stop when the radius exceeds the maximum.
        while (dCurrentRadius <= dMaxRadius)
        {
            // Get X and Y positions for the current point.
            double dCurrentX = dStartingX + dCurrentSpacingWindUp * cos(dAngleRadians);
            double dCurrentY = dStartingY + dCurrentSpacingWindUp * sin(dAngleRadians);

            // Add the current waypoint to the final vector.
            geoops::UTMCoordinate stCurrentCoordinate = stStartingPoint;
            stCurrentCoordinate.dEasting              = dCurrentX;
            stCurrentCoordinate.dNorthing             = dCurrentY;
            geoops::Waypoint stCurrentWaypoint(stCurrentCoordinate, geoops::WaypointType::eNavigationWaypoint);
            vWaypoints.push_back(stCurrentWaypoint);

            // Increment angle and radius for the next waypoint.
            dAngleRadians += dAngularStepRadians;
            dCurrentSpacingWindUp += dStartSpacing;

            // Calculate the current distance from the starting point. This is our radius.
            dCurrentRadius = geoops::CalculateGeoMeasurement(stStartingPoint, stCurrentCoordinate).dDistanceMeters;
        }

        // Write the search pattern points to the logger, just store the GPS lat/long.
        std::string szSearchPatternPoints = "Search Pattern Points (Spiral): ";
        for (geoops::Waypoint& stWaypoint : vWaypoints)
        {
            szSearchPatternPoints +=
                "(" + std::to_string(stWaypoint.GetGPSCoordinate().dLatitude) + ", " + std::to_string(stWaypoint.GetGPSCoordinate().dLongitude) + "), ";
        }
        // Submit logger message.
        LOG_DEBUG(logging::g_qSharedLogger, "{}", szSearchPatternPoints);

        return vWaypoints;
    }

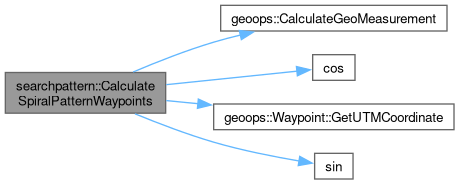

Here is the call graph for this function:

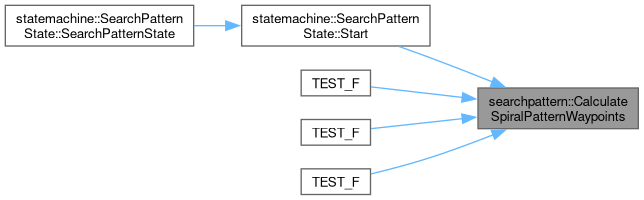

Here is the caller graph for this function:

CalculateSpiralPatternWaypoints() [2/2]

std::vector< geoops::Waypoint > searchpattern::CalculateSpiralPatternWaypoints ( const geoops::GPSCoordinate &  stStartingPoint, const double  dAngularStepDegrees = 57, const double  dMaxRadius = 25, const double  dStartingHeadingDegrees = 0, const double  dStartSpacing = 1  )

inline

Perform a spiral search pattern starting from a given point.

Parameters

stStartingPoint	- The coordinate of the starting point of the search.
dAngularStepDegrees	- The amount the angle is incremented in each iteration of the loop (degrees).
dMaxRadius	- The maximum radius to cover in the search (meters).
dStartingHeadingDegrees	- The angle the rover is facing at the start of the search (degrees).
dStartSpacing	- The spacing between successive points in the spiral (meters).

Returns

vWaypoints - A vector representing the waypoints forming the spiral search pattern.

Author

Jacob V (jpvf2.nosp@m.d@um.nosp@m.syste.nosp@m.m.ed.nosp@m.u)

Date

2024-02-04

    {
        // Define variables.
        std::vector<geoops::Waypoint> vWaypoints;
        geoops::UTMCoordinate stStartingPointUTM = geoops::ConvertGPSToUTM(stStartingPoint);
        double dAngularStepRadians               = dAngularStepDegrees * M_PI / 180;
        double dAngleRadians                     = (dStartingHeadingDegrees + 90) * M_PI / 180;
        double dCurrentSpacingWindUp             = 0.0;
        double dStartingX                        = stStartingPointUTM.dEasting;
        double dStartingY                        = stStartingPointUTM.dNorthing;
        double dCurrentRadius                    = 0.0;

        // Check if the MaxRadius is less than 1 meter. If so return an empty vector.
        if (dMaxRadius < 1)
        {
            // Submit logger message.
            LOG_WARNING(logging::g_qSharedLogger, "MaxRadius is less than 1 meter. Cannot create spiral pattern.");
            return vWaypoints;
        }

        // Calculate each waypoint. Stop when the radius exceeds the maximum.
        while (dCurrentRadius <= dMaxRadius)
        {
            // Get X and Y positions for the current point.
            double dCurrentX = dStartingX + dCurrentSpacingWindUp * cos(dAngleRadians);
            double dCurrentY = dStartingY + dCurrentSpacingWindUp * sin(dAngleRadians);

            // Add the current waypoint to the final vector.
            geoops::UTMCoordinate stCurrentCoordinate = stStartingPointUTM;
            stCurrentCoordinate.dEasting              = dCurrentX;
            stCurrentCoordinate.dNorthing             = dCurrentY;
            geoops::Waypoint stCurrentWaypoint(stCurrentCoordinate, geoops::WaypointType::eNavigationWaypoint);
            vWaypoints.push_back(stCurrentWaypoint);

            // Increment angle and radius for the next waypoint.
            dAngleRadians += dAngularStepRadians;
            dCurrentSpacingWindUp += dStartSpacing;

            // Calculate the current distance from the starting point. This is our radius.
            dCurrentRadius = geoops::CalculateGeoMeasurement(stStartingPointUTM, stCurrentCoordinate).dDistanceMeters;
        }

        // Write the search pattern points to the logger, just store the GPS lat/long.
        std::string szSearchPatternPoints = "Search Pattern Points (Spiral): ";
        for (geoops::Waypoint& stWaypoint : vWaypoints)
        {
            szSearchPatternPoints +=
                "(" + std::to_string(stWaypoint.GetGPSCoordinate().dLatitude) + ", " + std::to_string(stWaypoint.GetGPSCoordinate().dLongitude) + "), ";
        }
        // Submit logger message.
        LOG_DEBUG(logging::g_qSharedLogger, "{}", szSearchPatternPoints);

        return vWaypoints;
    }

Here is the call graph for this function:

CalculateZigZagPatternWaypoints() [1/2]

std::vector< geoops::Waypoint > searchpattern::CalculateZigZagPatternWaypoints ( const geoops::UTMCoordinate &  stCenterPoint, const double  dWidth = 20.0, const double  dHeight = 20.0, const double  dSpacing = 1.0, const bool  bVertical = true  )

inline

Calculate waypoints for a zigzag pattern. This function generates waypoints for a zigzag pattern starting from a given point with configurable width, height, and spacing. The direction of the zigzag pattern (vertical or horizontal) can be specified.

Parameters

stCenterPoint	- The center point of the zigzag pattern.
dWidth	- The width of the zigzag pattern in meters.
dHeight	- The height of the zigzag pattern in meters.
dSpacing	- The spacing between successive points in the zigzag pattern in meters.
bVertical	- Indicates whether or not the zigzag pattern is vertical or horizontal.

Returns

std::vector<geoops::Waypoint> - A vector representing the waypoints forming the zigzag search pattern.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2024-04-01

    {
        // Create instance variables.
        std::vector<geoops::Waypoint> vWaypoints;
        double dStartingX   = stCenterPoint.dEasting - (dWidth / 2);
        double dStartingY   = stCenterPoint.dNorthing - (dHeight / 2);
        double dCurrentX    = dStartingX;
        double dCurrentY    = dStartingY;
        bool bZigNotZag     = true;
        double bCalcSpacing = dSpacing;

        // Check if the width or height is less than 1 meter. If so return an empty vector.
        if (dWidth < 1 || dHeight < 1 || dSpacing < 1)
        {
            // Submit logger message.
            LOG_WARNING(logging::g_qSharedLogger, "Width or height or spacing is less than 1 meter. Cannot create zigzag pattern.");
            return vWaypoints;
        }

        // Limit spacing to the width or height.
        if (bCalcSpacing > dWidth / 2.0)
        {
            // Submit logger message.
            LOG_WARNING(logging::g_qSharedLogger, "Spacing is greater than width. Setting spacing to width / 2.");
            // Set spacing to half the width.
            bCalcSpacing = dWidth / 2.0 - 1.0;
        }
        if (bCalcSpacing > dHeight / 2.0)
        {
            // Submit logger message.
            LOG_WARNING(logging::g_qSharedLogger, "Spacing is greater than height. Setting spacing to height / 2.");
            // Set spacing to half the height.
            bCalcSpacing = dHeight / 2.0 - 1.0;
        }

        // Loop until covered entire space of width and height.
        while ((bVertical && dCurrentY <= dStartingY + dHeight) || (!bVertical && dCurrentX <= dStartingX + dWidth))
        {
            // Check if pattern should be vertical or horizontal.
            if (bVertical)
            {
                // Check step direction.
                if (bZigNotZag)
                {
                    // Zig.
                    dCurrentX = dStartingX + (dWidth / 2);
                }
                else
                {
                    // Zag.
                    dCurrentX = dStartingX - (dWidth / 2);
                }
            }
            else
            {
                // Check step direction.
                if (bZigNotZag)
                {
                    // Zig.
                    dCurrentY = dStartingY + (dHeight / 2);
                }
                else
                {
                    // Zag.
                    dCurrentY = dStartingY - (dHeight / 2);
                }
            }

            // Loop and add points along line until we reached the limit or width or height.
            while ((bZigNotZag && bVertical && dCurrentX <= dStartingX + dWidth) || (!bZigNotZag && bVertical && dCurrentX >= dStartingX) ||
                   (bZigNotZag && !bVertical && dCurrentY <= dStartingY + dHeight) || (!bZigNotZag && !bVertical && dCurrentY >= dStartingY))
            {
                // Construct UTMCoordinate.
                geoops::UTMCoordinate stCurrentCoordinate = stCenterPoint;
                stCurrentCoordinate.dEasting              = dCurrentX;
                stCurrentCoordinate.dNorthing             = dCurrentY;
                geoops::Waypoint stCurrentWaypoint(stCurrentCoordinate, geoops::WaypointType::eNavigationWaypoint);
                // Add current waypoint to final path.
                vWaypoints.push_back(stCurrentWaypoint);

                // Move to the next point based on spacing and direction.
                if (bVertical)
                {
                    // Increment current position.
                    dCurrentX += bZigNotZag ? bCalcSpacing : -bCalcSpacing;
                }
                else
                {
                    // Increment current position.
                    dCurrentY += bZigNotZag ? bCalcSpacing : -bCalcSpacing;
                }
            }

            // Now shift the opposite coordinate forward.
            if (bVertical)
            {
                dCurrentY += bCalcSpacing;
            }
            else
            {
                dCurrentX += bCalcSpacing;
            }

            // Toggle zigzag direction.
            bZigNotZag = !bZigNotZag;
        }

        // The path now contains the zigzag pattern with points spaced at the specified distance. This means that there
        // are many points potentially very close to each other. This is not ideal for navigation, so we will filter out
        // points that are too close to each other, by calculating their GeoMeasurement and testing if the distance is greater
        // then the CalcSpacing. If the CalcSpacing is greater a certain threshold, we will remove the point since it jumps to the other side.
        // This will reduce the number of points in the zigzag pattern, making it more efficient for navigation.

        // Create a vector to store the filtered waypoints.
        std::vector<geoops::Waypoint> vFilterWaypoints;
        // Always store the first point.
        vFilterWaypoints.push_back(vWaypoints[0]);
        // Loop through the waypoints and remove any that are too close to each other.
        for (size_t i = 0; i < vWaypoints.size() - 1; ++i)
        {
            // Calculate the GeoMeasurement between the current waypoint and the next waypoint.
            geoops::GeoMeasurement stGeoMeasurement = geoops::CalculateGeoMeasurement(vWaypoints[i].GetGPSCoordinate(), vWaypoints[i + 1].GetGPSCoordinate());
            if (stGeoMeasurement.dDistanceMeters > bCalcSpacing * 1.5)
            {
                // Add the points to the filtered waypoints.
                vFilterWaypoints.push_back(vWaypoints[i]);
                vFilterWaypoints.push_back(vWaypoints[i + 1]);
            }
        }

        // Write the search pattern points to the logger, just store the GPS lat/long.
        std::string szSearchPatternPoints = "Search Pattern Points (Spiral): ";
        for (geoops::Waypoint& stWaypoint : vWaypoints)
        {
            szSearchPatternPoints +=
                "(" + std::to_string(stWaypoint.GetGPSCoordinate().dLatitude) + ", " + std::to_string(stWaypoint.GetGPSCoordinate().dLongitude) + "), ";
        }
        // Submit logger message.
        LOG_DEBUG(logging::g_qSharedLogger, "{}", szSearchPatternPoints);

        // Return the final path.
        return vFilterWaypoints;
    }

Here is the call graph for this function:

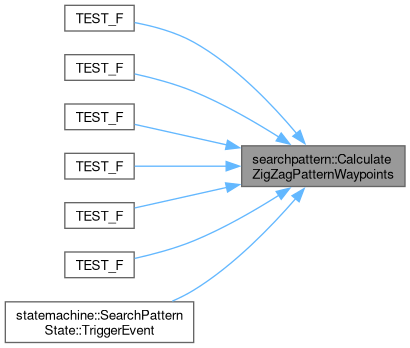

Here is the caller graph for this function:

CalculateZigZagPatternWaypoints() [2/2]

std::vector< geoops::Waypoint > searchpattern::CalculateZigZagPatternWaypoints ( const geoops::GPSCoordinate &  stCenterPoint, const double  dWidth = 20.0, const double  dHeight = 20.0, const double  dSpacing = 1.0, const bool  bVertical = true  )

inline

Calculate waypoints for a zigzag pattern. This function generates waypoints for a zigzag pattern starting from a given point with configurable width, height, and spacing. The direction of the zigzag pattern (vertical or horizontal) can be specified.

Parameters

stCenterPoint	- The center point of the zigzag pattern.
dWidth	- The width of the zigzag pattern in meters.
dHeight	- The height of the zigzag pattern in meters.
dSpacing	- The spacing between successive points in the zigzag pattern in meters.
bVertical	- Indicates whether or not the zigzag pattern is vertical or horizontal.

Returns

std::vector<geoops::Waypoint> - A vector representing the waypoints forming the zigzag search pattern.

Author

clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)

Date

2024-04-01

    {
        // Create instance variables.
        std::vector<geoops::Waypoint> vWaypoints;
        geoops::UTMCoordinate stCenterPointUTM = geoops::ConvertGPSToUTM(stCenterPoint);
        double dStartingX                      = stCenterPointUTM.dEasting - (dWidth / 2);
        double dStartingY                      = stCenterPointUTM.dNorthing - (dHeight / 2);
        double dCurrentX                       = dStartingX;
        double dCurrentY                       = dStartingY;
        bool bZigNotZag                        = true;
        double bCalcSpacing                    = dSpacing;

        // Check if the width or height is less than 1 meter. If so return an empty vector.
        if (dWidth < 1 || dHeight < 1 || dSpacing < 1)
        {
            // Submit logger message.
            LOG_WARNING(logging::g_qSharedLogger, "Width or height or spacing is less than 1 meter. Cannot create zigzag pattern.");
            return vWaypoints;
        }

        // Limit spacing to the width or height.
        if (bCalcSpacing > dWidth / 2.0)
        {
            // Submit logger message.
            LOG_WARNING(logging::g_qSharedLogger, "Spacing is greater than width. Setting spacing to width / 2.");
            // Set spacing to half the width.
            bCalcSpacing = dWidth / 2.0 - 1.0;
        }
        if (bCalcSpacing > dHeight / 2.0)
        {
            // Submit logger message.
            LOG_WARNING(logging::g_qSharedLogger, "Spacing is greater than height. Setting spacing to height / 2.");
            // Set spacing to half the height.
            bCalcSpacing = dHeight / 2.0 - 1.0;
        }

        // Loop until covered entire space of width and height.
        while ((bVertical && dCurrentY <= dStartingY + dHeight) || (!bVertical && dCurrentX <= dStartingX + dWidth))
        {
            // Check if pattern should be vertical or horizontal.
            if (bVertical)
            {
                // Check step direction.
                if (bZigNotZag)
                {
                    // Zig.
                    dCurrentX = dStartingX + bCalcSpacing;
                }
                else
                {
                    // Zag.
                    dCurrentX = dStartingX - bCalcSpacing;
                }
            }
            else
            {
                // Check step direction.
                if (bZigNotZag)
                {
                    // Zig.
                    dCurrentY = dStartingY + bCalcSpacing;
                }
                else
                {
                    // Zag.
                    dCurrentY = dStartingY - bCalcSpacing;
                }
            }

            // Loop and add points along line until we reached the limit or width or height.
            while ((bZigNotZag && bVertical && dCurrentX <= dStartingX + dWidth) || (!bZigNotZag && bVertical && dCurrentX >= dStartingX) ||
                   (bZigNotZag && !bVertical && dCurrentY <= dStartingY + dHeight) || (!bZigNotZag && !bVertical && dCurrentY >= dStartingY))
            {
                // Construct UTMCoordinate.
                geoops::UTMCoordinate stCurrentCoordinate = stCenterPointUTM;
                stCurrentCoordinate.dEasting              = dCurrentX;
                stCurrentCoordinate.dNorthing             = dCurrentY;
                geoops::Waypoint stCurrentWaypoint(stCurrentCoordinate, geoops::WaypointType::eNavigationWaypoint);
                // Add current waypoint to final path.
                vWaypoints.push_back(stCurrentWaypoint);

                // Move to the next point based on spacing and direction.
                if (bVertical)
                {
                    // Increment current position.
                    dCurrentX += bZigNotZag ? bCalcSpacing : -bCalcSpacing;
                }
                else
                {
                    // Increment current position.
                    dCurrentY += bZigNotZag ? bCalcSpacing : -bCalcSpacing;
                }
            }

            // Now shift the opposite coordinate forward.
            if (bVertical)
            {
                dCurrentY += bCalcSpacing;
            }
            else
            {
                dCurrentX += bCalcSpacing;
            }

            // Toggle zigzag direction.
            bZigNotZag = !bZigNotZag;
        }

        // The path now contains the zigzag pattern with points spaced at the specified distance. This means that there
        // are many points potentially very close to each other. This is not ideal for navigation, so we will filter out
        // points that are too close to each other, by calculating their GeoMeasurement and testing if the distance is greater
        // then the CalcSpacing. If the CalcSpacing is greater a certain threshold, we will remove the point since it jumps to the other side.
        // This will reduce the number of points in the zigzag pattern, making it more efficient for navigation.

        // Create a vector to store the filtered waypoints.
        std::vector<geoops::Waypoint> vFilterWaypoints;
        // Always store the first point.
        vFilterWaypoints.push_back(vWaypoints[0]);
        // Loop through the waypoints and remove any that are too close to each other.
        for (size_t i = 0; i < vWaypoints.size() - 1; ++i)
        {
            // Calculate the GeoMeasurement between the current waypoint and the next waypoint.
            geoops::GeoMeasurement stGeoMeasurement = geoops::CalculateGeoMeasurement(vWaypoints[i].GetGPSCoordinate(), vWaypoints[i + 1].GetGPSCoordinate());
            if (stGeoMeasurement.dDistanceMeters > bCalcSpacing * 1.5)
            {
                // Add the points to the filtered waypoints.
                vFilterWaypoints.push_back(vWaypoints[i]);
                vFilterWaypoints.push_back(vWaypoints[i + 1]);
            }
        }

        // Write the search pattern points to the logger, just store the GPS lat/long.
        std::string szSearchPatternPoints = "Search Pattern Points (Spiral): ";
        for (geoops::Waypoint& stWaypoint : vWaypoints)
        {
            szSearchPatternPoints +=
                "(" + std::to_string(stWaypoint.GetGPSCoordinate().dLatitude) + ", " + std::to_string(stWaypoint.GetGPSCoordinate().dLongitude) + "), ";
        }
        // Submit logger message.
        LOG_DEBUG(logging::g_qSharedLogger, "{}", szSearchPatternPoints);

        // Return the final path.
        return vFilterWaypoints;
    }

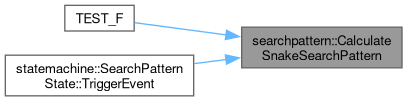

Here is the call graph for this function:
