AutonomyConstants.cpp File Reference

Defines constants for the autonomy software. More...

#include "./AutonomyConstants.h"

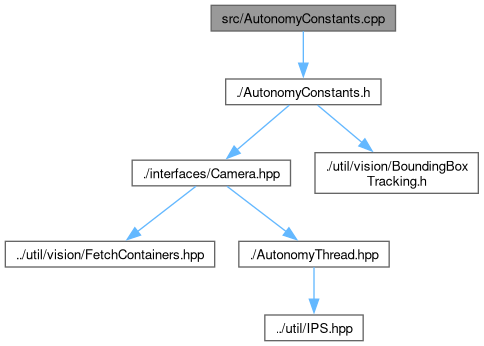

Include dependency graph for AutonomyConstants.cpp:

Namespaces

namespace  constants
 Namespace containing all constants for autonomy software. Including AutonomyGlobals.h will also include this namespace.


Variables

const bool constants::MODE_SIM = false

const std::string constants::SIM_IP_ADDRESS = "127.0.0.1"

const uint constants::SIM_WEBSOCKET_PORT = 8080

const uint constants::SIM_WEBRTC_QP = 25

const double constants::BATTERY_MINIMUM_CELL_VOLTAGE = 3.2

const bool constants::BATTERY_CHECKS_ENABLED = false

const std::string constants::LOGGING_OUTPUT_PATH_ABSOLUTE = "../logs/"

const quill::LogLevel constants::CONSOLE_MIN_LEVEL = quill::LogLevel::TraceL3

const quill::LogLevel constants::FILE_MIN_LEVEL = quill::LogLevel::TraceL3

const quill::LogLevel constants::ROVECOMM_MIN_LEVEL = quill::LogLevel::Info

const quill::LogLevel constants::CONSOLE_DEFAULT_LEVEL = quill::LogLevel::Info

const quill::LogLevel constants::FILE_DEFAULT_LEVEL = quill::LogLevel::TraceL3

const quill::LogLevel constants::ROVECOMM_DEFAULT_LEVEL = quill::LogLevel::Info

const std::string constants::szTraceL3Color = "\033[30m"

const std::string constants::szTraceL2Color = "\033[30m"

const std::string constants::szTraceL1Color = "\033[30m"

const std::string constants::szDebugColor = "\033[36m"

const std::string constants::szInfoColor = "\033[32m"

const std::string constants::szNoticeColor = "\033[97m\033[1m"

const std::string constants::szWarningColor = "\033[93m\033[1m"

const std::string constants::szErrorColor = "\033[91m\033[1m"

const std::string constants::szCriticalColor = "\033[95m\033[1m"

const std::string constants::szBacktraceColor = "\033[30m"

const int constants::ROVECOMM_OUTGOING_UDP_PORT = MODE_SIM ? 11001 : 11000

const int constants::ROVECOMM_OUTGOING_TCP_PORT = MODE_SIM ? 12001 : 12000

const std::string constants::ROVECOMM_TCP_INTERFACE_IP = "127.0.0.1"

const float constants::DRIVE_MAX_POWER = 1.0

const float constants::DRIVE_MIN_POWER = -1.0

const float constants::DRIVE_MAX_EFFORT = 0.5

const float constants::DRIVE_MIN_EFFORT = -0.5

const double constants::DRIVE_PID_PROPORTIONAL = 0.008

const double constants::DRIVE_PID_INTEGRAL = 0.001

const double constants::DRIVE_PID_DERIVATIVE = 0.004

const double constants::DRIVE_PID_FEEDFORWARD = 0.0

const double constants::DRIVE_PID_MAX_ERROR = 180.0

const double constants::DRIVE_PID_MAX_INTEGRAL_TERM = 0.2

const double constants::DRIVE_PID_MAX_RAMP_RATE = 0.08

const double constants::DRIVE_PID_OUTPUT_FILTER = 0.1

const double constants::DRIVE_PID_TOLERANCE = 1.0

const bool constants::DRIVE_PID_OUTPUT_REVERSED = false

const bool constants::DRIVE_SQUARE_CONTROL_INPUTS = false

const bool constants::DRIVE_CURVATURE_KINEMATICS_ALLOW_TURN_WHILE_STOPPED = true

const int constants::RECORDER_FPS = 15

const bool constants::ZED_MAINCAM_ENABLE_RECORDING = true

const bool constants::BASICCAM_GROUNDCAM_ENABLE_RECORDING = true

const bool constants::TAGDETECT_MAINCAM_ENABLE_RECORDING = true

const bool constants::TAGDETECT_GROUNDCAM_ENABLE_RECORDING = true

const bool constants::OBJECTDETECT_MAINCAM_ENABLE_RECORDING = true

const sl::RESOLUTION constants::ZED_BASE_RESOLUTION = sl::RESOLUTION::HD720

const sl::UNIT constants::ZED_MEASURE_UNITS = sl::UNIT::METER

const sl::COORDINATE_SYSTEM constants::ZED_COORD_SYSTEM = sl::COORDINATE_SYSTEM::LEFT_HANDED_Y_UP

const sl::DEPTH_MODE constants::ZED_DEPTH_MODE = sl::DEPTH_MODE::NEURAL

const sl::VIEW constants::ZED_RETRIEVE_VIEW = sl::VIEW::LEFT

const bool constants::ZED_SDK_VERBOSE = false

const bool constants::ZED_SENSING_FILL = false

const float constants::ZED_DEFAULT_MINIMUM_DISTANCE = 0.5

const float constants::ZED_DEFAULT_MAXIMUM_DISTANCE = 40.0

const float constants::ZED_DEFAULT_FLOOR_PLANE_ERROR = 0.5

const int constants::ZED_DEPTH_STABILIZATION = 1

const sl::SVO_COMPRESSION_MODE constants::ZED_SVO_COMPRESSION = sl::SVO_COMPRESSION_MODE::H265

const int constants::ZED_SVO_BITRATE = 1000

const sl::POSITIONAL_TRACKING_MODE constants::ZED_POSETRACK_MODE = sl::POSITIONAL_TRACKING_MODE::GEN_1

const bool constants::ZED_POSETRACK_AREA_MEMORY = true

const bool constants::ZED_POSETRACK_POSE_SMOOTHING = false

const bool constants::ZED_POSETRACK_FLOOR_IS_ORIGIN = true

const bool constants::ZED_POSETRACK_ENABLE_IMU_FUSION = true

const float constants::ZED_POSETRACK_USABLE_DEPTH_MIN = 0.75

const bool constants::ZED_POSETRACK_USE_GRAVITY_ORIGIN = true

const sl::SpatialMappingParameters::SPATIAL_MAP_TYPE constants::ZED_MAPPING_TYPE = sl::SpatialMappingParameters::SPATIAL_MAP_TYPE::MESH

const float constants::ZED_MAPPING_RANGE_METER = 20.0f

const float constants::ZED_MAPPING_RESOLUTION_METER = 0.03f

const int constants::ZED_MAPPING_MAX_MEMORY = 4096

const bool constants::ZED_MAPPING_USE_CHUNK_ONLY = true

const int constants::ZED_MAPPING_STABILITY_COUNTER = 3

const bool constants::ZED_OBJDETECTION_TRACK_OBJ = true

const bool constants::ZED_OBJDETECTION_SEGMENTATION = false

const sl::OBJECT_FILTERING_MODE constants::ZED_OBJDETECTION_FILTERING = sl::OBJECT_FILTERING_MODE::NMS3D_PER_CLASS

const float constants::ZED_OBJDETECTION_TRACKING_PREDICTION_TIMEOUT = 0.5

const float constants::ZED_OBJDETECTION_BATCH_RETENTION_TIME = 240

const float constants::ZED_OBJDETECTION_BATCH_LATENCY = 2

const sl::UNIT constants::FUSION_MEASUREMENT_UNITS = ZED_MEASURE_UNITS

const sl::COORDINATE_SYSTEM constants::FUSION_COORD_SYSTEM = ZED_COORD_SYSTEM

const bool constants::FUSION_SDK_VERBOSE = false

const bool constants::FUSION_ENABLE_GNSS_FUSION = false

const cv::InterpolationFlags constants::BASICCAM_RESIZE_INTERPOLATION_METHOD = cv::InterpolationFlags::INTER_LINEAR

const int constants::ZED_MAINCAM_RESOLUTIONX = 1280

const int constants::ZED_MAINCAM_RESOLUTIONY = 720

const int constants::ZED_MAINCAM_FPS = 60

const int constants::ZED_MAINCAM_HORIZONTAL_FOV = 110

const int constants::ZED_MAINCAM_VERTICAL_FOV = 70

const bool constants::ZED_MAINCAM_EXPORT_SVO_RECORDING = true

const bool constants::ZED_MAINCAM_EXPORT_SPATIAL_MAP = false

const bool constants::ZED_MAINCAM_USE_GPU_MAT = MODE_SIM ? false : true

const bool constants::ZED_MAINCAM_USE_HALF_PRECISION_DEPTH = true

const bool constants::ZED_MAINCAM_FUSION_MASTER = false

const int constants::ZED_MAINCAM_FRAME_RETRIEVAL_THREADS = 10

const int constants::ZED_MAINCAM_SERIAL = 31237348

const int constants::BASICCAM_GROUNDCAM_RESOLUTIONX = 1280

const int constants::BASICCAM_GROUNDCAM_RESOLUTIONY = 720

const int constants::BASICCAM_GROUNDCAM_FPS = 30

const int constants::BASICCAM_GROUNDCAM_HORIZONTAL_FOV = 110

const int constants::BASICCAM_GROUNDCAM_VERTICAL_FOV = 70

const int constants::BASICCAM_GROUNDCAM_FRAME_RETRIEVAL_THREADS = 5

const int constants::BASICCAM_GROUNDCAM_INDEX = 0

const PIXEL_FORMATS constants::BASICCAM_GROUNDCAM_PIXELTYPE = PIXEL_FORMATS::eBGR

const double constants::BBOX_MIN_LIFETIME_THRESHOLD = 0.15

const double constants::BBOX_MIN_SCREEN_PERCENTAGE = 0.001

const double constants::BBOX_TRACKER_LOST_TIMEOUT = 0.1

const double constants::BBOX_TRACKER_MAX_TRACK_TIME = 5.0

const double constants::BBOX_TRACKER_IOU_MATCH_THRESHOLD = 0.1

const tracking::TrackerType constants::BBOX_TRACKER_TYPE = tracking::TrackerType::eCSRT

const int constants::TAGDETECT_MAINCAM_DATA_RETRIEVAL_THREADS = 2

const int constants::TAGDETECT_MAINCAM_CORNER_REFINE_MAX_ITER = 30

const int constants::TAGDETECT_MAINCAM_CORNER_REFINE_METHOD = cv::aruco::CORNER_REFINE_NONE

const bool constants::TAGDETECT_MAINCAM_DETECT_INVERTED_MARKER = true

const int constants::TAGDETECT_MAINCAM_MARKER_BORDER_BITS = 1

const bool constants::TAGDETECT_MAINCAM_USE_ARUCO3_DETECTION = true

const bool constants::TAGDETECT_MAINCAM_ENABLE_TRACKING = true

const int constants::TAGDETECT_MAINCAM_MAX_FPS = 30

const bool constants::TAGDETECT_MAINCAM_ENABLE_TORCH = true

const std::string constants::TAGDETECT_MAINCAM_TORCH_MODEL

const float constants::TAGDETECT_MAINCAM_TORCH_CONFIDENCE = 0.7f

const float constants::TAGDETECT_MAINCAM_TORCH_NMS_THRESH = 0.4f

const int constants::OBJECTDETECT_MAINCAM_DATA_RETRIEVAL_THREADS = 2

const bool constants::OBJECTDETECT_MAINCAM_ENABLE_TRACKING = true

const int constants::OBJECTDETECT_MAINCAM_MAX_FPS = 30

const bool constants::OBJECTDETECT_MAINCAM_ENABLE_TORCH = true

const std::string constants::OBJECTDETECT_MAINCAM_TORCH_MODEL

const float constants::OBJECTDETECT_MAINCAM_TORCH_CONFIDENCE = 0.8f

const float constants::OBJECTDETECT_MAINCAM_TORCH_NMS_THRESH = 0.4f

const cv::aruco::PredefinedDictionaryType constants::ARUCO_DICTIONARY = cv::aruco::DICT_4X4_50

const float constants::ARUCO_TAG_SIDE_LENGTH = 0.015f

const double constants::ARUCO_PIXEL_THRESHOLD = 175

const double constants::ARUCO_PIXEL_THRESHOLD_MAX_VALUE = 255

const cv::Mat constants::ARUCO_SHARPEN_KERNEL_FAST = (cv::Mat_<double>(3, 3) << 0, 0, 0, 0, 3, 0, 0, 0, 0)

const cv::Mat constants::ARUCO_SHARPEN_KERNEL_EXTRA = (cv::Mat_<double>(3, 3) << 0, 0, 0, 0, 9, 0, 0, 0, 0)

const cv::Mat constants::ARUCO_EDGE_KERNEL = (cv::Mat_<double>(3, 3) << 0, -1, 0, -1, 5, -1, 0, -1, 0)

const int constants::STATEMACHINE_MAX_IPS = 60

const double constants::STATEMACHINE_ZED_REALIGN_THRESHOLD = 0.5

const double constants::APPROACH_MARKER_MOTOR_POWER = DRIVE_MAX_EFFORT * 0.6

const double constants::APPROACH_MARKER_PROXIMITY_THRESHOLD = 2.0

const double constants::APPROACH_MARKER_LOST_GIVE_UP_TIME = 15.0

const bool constants::APPROACH_MARKER_VERIFY_POSITION = true

const double constants::APPROACH_MARKER_VERIFY_TIME = 5.0

const double constants::APPROACH_MARKER_TAG_LOST_BUFFER_TIME = 2.0

const bool constants::APPROACH_MARKER_ENABLE_STUCK_DETECT = false

const double constants::APPROACH_OBJECT_MOTOR_POWER = DRIVE_MAX_EFFORT * 0.6

const double constants::APPROACH_OBJECT_PROXIMITY_THRESHOLD = 2.0

const double constants::APPROACH_OBJECT_LOST_GIVE_UP_TIME = 15.0

const bool constants::APPROACH_OBJECT_VERIFY_POSITION = true

const double constants::APPROACH_OBJECT_VERIFY_TIME = 5.0

const double constants::APPROACH_OBJECT_LOST_BUFFER_TIME = 2.0

const bool constants::APPROACH_OBJECT_ENABLE_STUCK_DETECT = false

const double constants::STUCK_CHECK_INTERVAL = 2.0

const unsigned int constants::STUCK_CHECK_ATTEMPTS = 3

const double constants::STUCK_CHECK_ROT_THRESH = 1.0

const double constants::STUCK_CHECK_VEL_THRESH = 0.01

const double constants::STUCK_SAME_POINT_PROXIMITY = 1.0

const double constants::STUCK_HEADING_ALIGN_TIMEOUT = 5.0

const double constants::STUCK_ALIGN_DEGREES = 65.0

const double constants::STUCK_ALIGN_TOLERANCE = 5.0

const double constants::REVERSE_MOTOR_POWER = DRIVE_MAX_EFFORT * 0.6

const double constants::REVERSE_DISTANCE = 3.0

const double constants::REVERSE_TIMEOUT_PER_METER = 5.0

const bool constants::REVERSE_MAINTAIN_HEADING = true

const double constants::SEARCH_MOTOR_POWER = DRIVE_MAX_EFFORT * 0.5

const double constants::SEARCH_ANGULAR_STEP_DEGREES = 57.0

const double constants::SEARCH_SPIRAL_SPACING = 1.0

const double constants::SEARCH_ZIGZAG_SPACING = 4.0

const double constants::SEARCH_SNAKE_SLITHERS = 2.0

const double constants::SEARCH_WAYPOINT_PROXIMITY = 2.0

const bool constants::SEARCH_ENABLE_STUCK_DETECT = false

const double constants::NAVIGATING_MOTOR_POWER = DRIVE_MAX_EFFORT * 0.8

const double constants::NAVIGATING_REACHED_GOAL_RADIUS = 2.0

const bool constants::NAVIGATING_VERIFY_POSITION = false

const double constants::NAVIGATING_VERIFY_SAMPLE_TIME = 30.0

const bool constants::NAVIGATING_ENABLE_STUCK_DETECT = false

const double constants::AVOIDANCE_STATE_MOTOR_POWER = DRIVE_MAX_EFFORT * 0.3

const double constants::STANLEY_CROSSTRACK_CONTROL_GAIN = 0.5

const double constants::STANLEY_DIST_TO_FRONT_AXLE = 0.5

const double constants::STANLEY_STEERING_ANGLE_LIMIT = 30.0

const int constants::STANLEY_PREDICTION_HORIZON = 1

const double constants::STANLEY_PREDICTION_TIME_STEP = 0.01

const double constants::ASTAR_AVOIDANCE_MULTIPLIER = 1.2

const double constants::ASTAR_MAX_SEARCH_GRID = 4000.0

const double constants::ASTAR_MAX_SEARCH_TIME = 120.0

const double constants::ASTAR_NODE_SIZE = 0.5

const double constants::NAVBOARD_MAX_GPS_DATA_AGE = 3.0

const double constants::NAVBOARD_MAX_COMPASS_DATA_AGE = 3.0


Detailed Description

Defines constants for the autonomy software.

Author
clayjay3 (clayt.nosp@m.onra.nosp@m.ycowe.nosp@m.n@gm.nosp@m.ail.c.nosp@m.om)
Date
2025-04-06
Copyright
Copyright Mars Rover Design Team 2025 - All Rights Reserved
